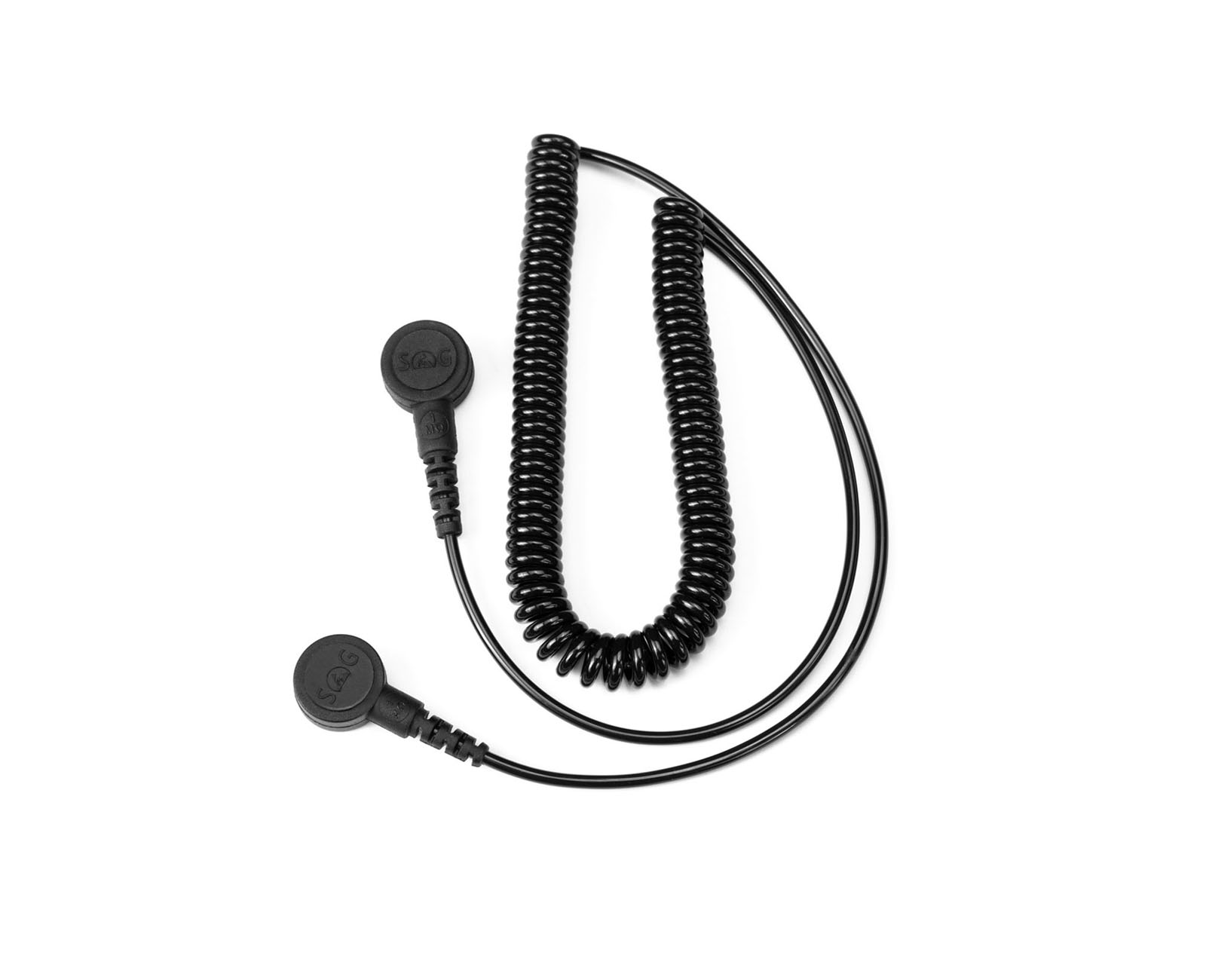

TM20ESD Spiral Earthing Cable
TM20
ESD Spiral Earthing Cable

ESD Spiral Earthing Cable is a component in personal grounding to protect electronic equipment and components from electrostatic discharge. The leakage resistance is 2 Mohm.

The length of the cable of 2.4 meters allows flexible working without restricting the freedom of movement.

The ESD Spiral Cable has a 3 mm and 10 mm press studs.
TM20 - ESD Spiral Earthing Cable
1
TM20 ESD Spiral Earthing Cable
Tested according to:
BGI 818: 2001
Length
2.4 m / 94.48 in
Connections
ø10 mm press stud (1x) and
ø3 mm press stud (1x)
Electrical resistance
106 Ω
Color
Black
Net weight
0,03 kg (0.06lb)
Weight and dimensions
29 gr (0.06 lb)
48 gr (0.11 lb)
81 x 43 x 114 mm
