DMSD4-Tool Rework Station with DT530
DMSD-2QB - 4-Tool Rework Station with DT530

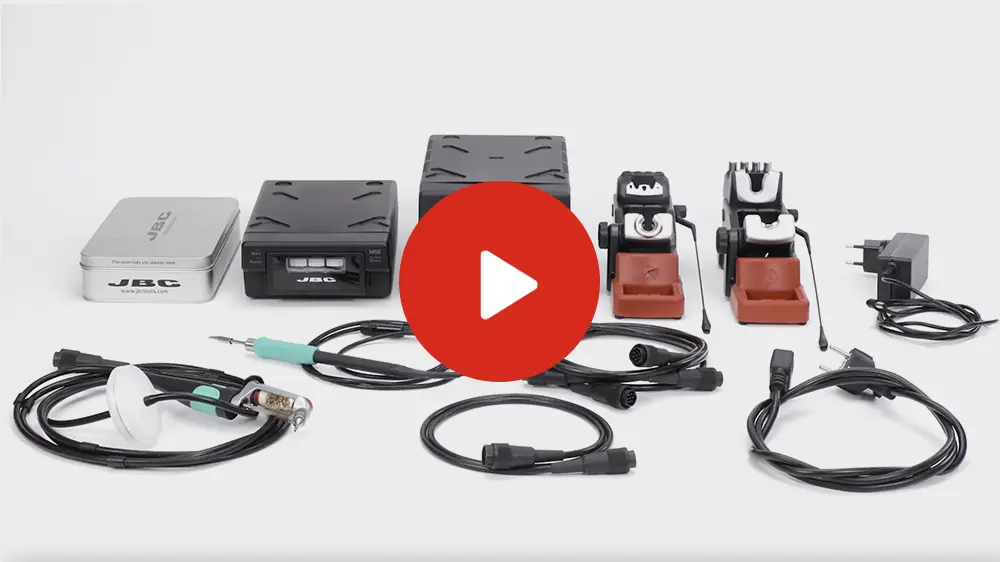

DMSD Station
4-Tool Rework with DT530

DMSD-2QB - 4-Tool Rework Station with DT530
DMSD offers a solution for both SMDs and high-power applications. This station is perfect for desoldering jobs of through-hole components and removing excess solder after SMD rework.

It offers the highest soldering quality thanks to JBC Most Efficient Soldering System, with Intelligent Heat Management to extend tip life and reduce energy consumption.
Includes:

• DME 4-Tool Control Unit manages up to 4 tools simultaneously and is fully compatible with 13 different JBC Tools, delivering up to 150 W per tool.

• T245 General Purpose Handle and DT530 Angled Desoldering Iron.

• T245 works with C245 Cartridge Range and DT530 with D530 Tip Range.

• MSE Electric Desoldering Module provides exceptional suction power, reaching up to 85% vacuum, ensuring precise and efficient solder removal.
Don’t believe us...
TRY IT!
REFERENCES
DMSD-9QB
100 V
DMSD-1QB
120 V
DMSD-2QB
230 V
PRODUCT COMPOSITION
SPECIFICATIONS
DME Control Unit
Nominal power
200 W
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF / Meets and exceeds
IPC J-STD-001F
Temperature accuracy
±3 % (using reference cartridge)
Temp. adjustment
±50 ºC / ±90 ºF through station setting menu
Tip to ground vol./ resist.
Meets and exceeds
ANSI/ESD S20.20 and IPC J-STD-001F
Ambient Operating Temp
10 - 40 ºC / 50 - 104 ºF
Connections
USB-A:
Firmware Update,
Graphics and Profiles,
Dino-Lite USB Microscope
(models AM2011, AM2111)
USB-B:
PC Communication
RJ12:
Fume Extractor/Peripherals/Robot
MSE Module
Power
42 W
Vacuum
85 % / 640 mmHg / 25.4 inHg
Flow rate
35 SLPM
Ambient Operating Temp
10 - 40 °C / 50 - 104 °F
Pedal connector
Yes
Complies with CE standards
ESD safe
Weight and dimensions
Control Unit
232 x 148 x 120 mm / 7.23 kg.
9.13 x 5.83 x 4.72 in / 15.93 lb.
Package
495 x 415 x 395 mm / 10.26 kg.
19.49 x 16.34 x 15.55 in / 22.61 lb.
